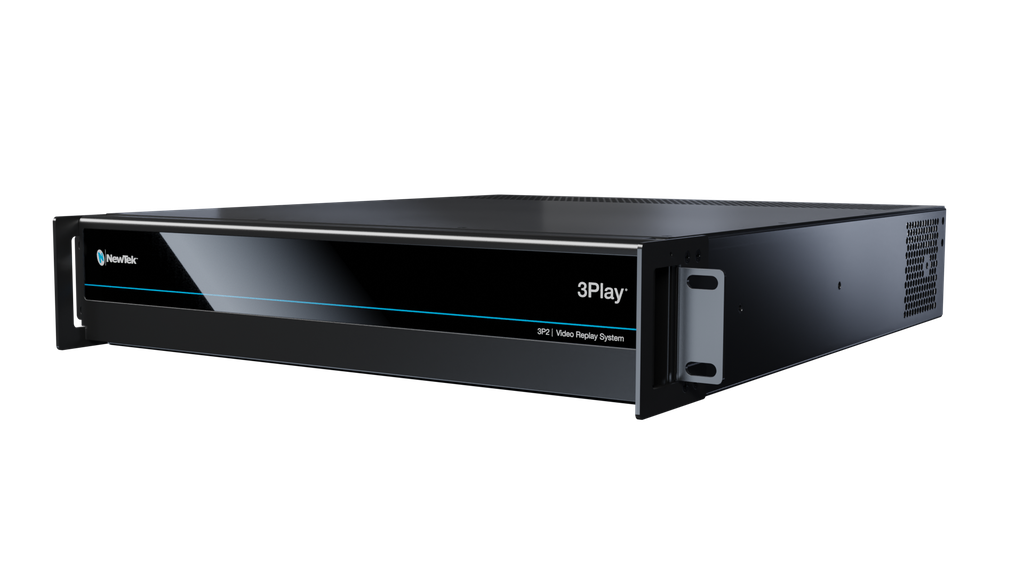

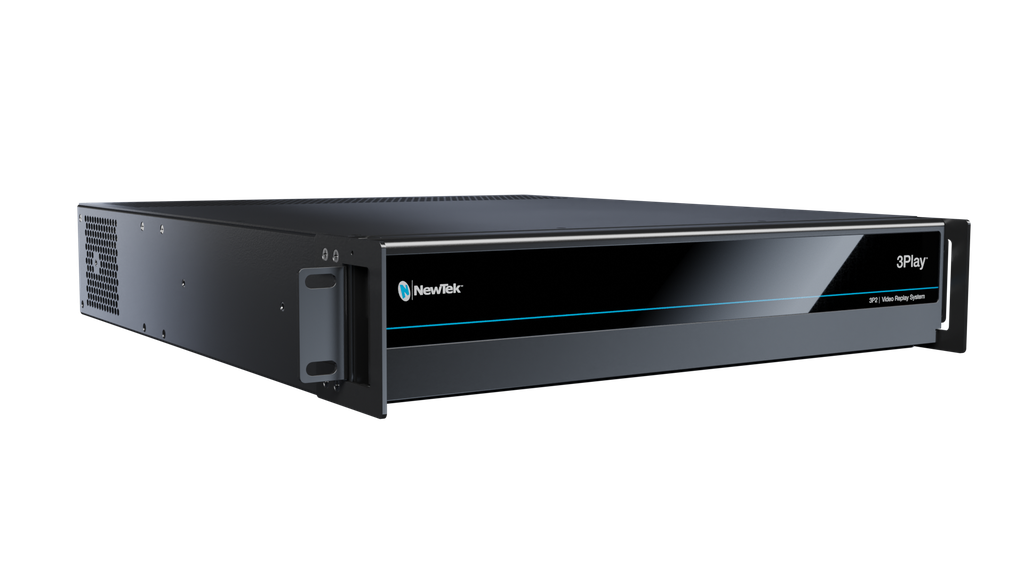

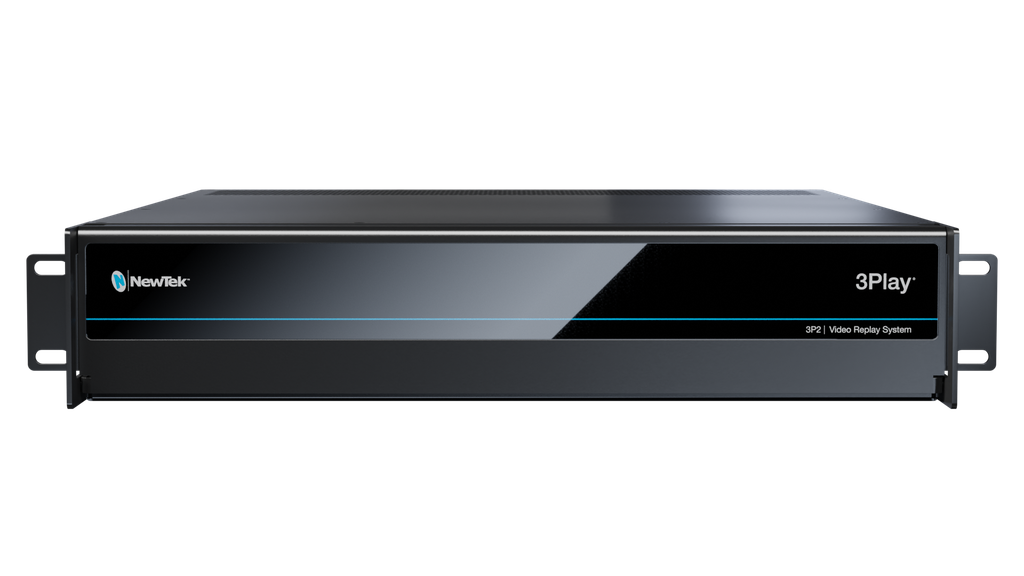

Vizrt Viz 3Play 3P2 2RU (3P22RU) (New)
Price via quote

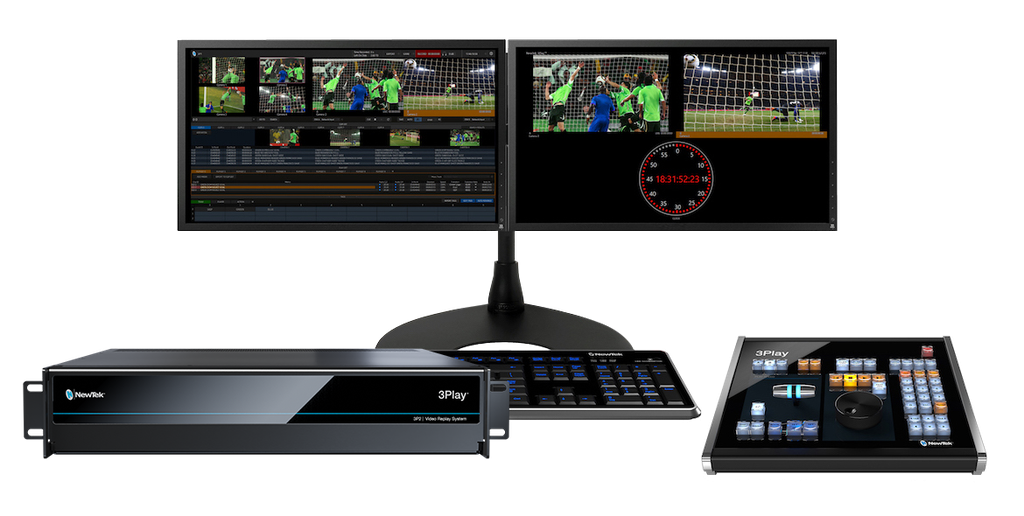

Sports Replay Production System - Includes 3P1 Control Surface
Select Condition
Vizrt Viz 3Play 3P2 2RU (3P22RU) (New)
Sports Replay Production System - Includes 3P1 Control Surface
3Play® 3P2 is a complete, cost-effective, IP based live event production and replay system that takes advantage of software-driven video technology and modern networking to provide users with comprehensive capabilities, increased scalability and flexibility, ease of use, and seamless integration with NewTek’s industry-leading live production and real-time graphics solutions for an end-to-end IP ecosystem that can be implemented and replicated easily and affordably, regardless of infrastructure or workflows.
Features
Replay. Better.
More channels, More moments, every last second of action.
Offering better connectivity than ever before, 3Play® 3P2 takes replay to another level with all new tools that capture all of the action, all of the time.
10 channel replay system supporting up to 8 external inputs and 2 outputs
8 concurrent capture streams
Record and playback simultaneously
Multi-purpose video server with record, clip preview, and playout
Preview all angles simultaneously while recording and playing back video
Playback zoom and tracking for area of interest replays
Work. Better.
Teamwork isn't limited to the game; unrivaled connectivity and collaboration with industry leading tools.
3Play® 3P2 integrates with any workflow and now provides unparalleled collaboration tools allowing production teams to work smarter and faster.
Up to 2160p60 video on all channels with end-to-end IP connectivity
8x NDI inputs supporting hybrid SDI and IP source workflow
4 x 3G-SDI inputs on the chassis for convenience
Playlist sharing allowing collaboration between 3Play® and TriCaster production systems
3 multi-viewer outputs
LivePanel™ add-on to build browser-based user interfaces and workflows
Macro triggering via NDI HTTP, GPI, MIDI, and more
Real-time social media export or transcode files for immediate delivery
Quality. Better.
You never have to drop the ball on quality; all the action and no compromise.
Not only does 3Play® 3P2 offer stunning 4K for the first time, but an array of new features means the quality of your production will never suffer and deliver the most professional of streams, always.
Ultra-high definition 2160p60 video format
Build playlists with full transitions, audio, sound effects, and stinger animations
Integrated dual-channel telestration with remote transport control
Automatic color correction and full proc amp controls on every input
Program/Preview workflow with animated warping transitions
Independent resolution and framerate support per input
Music bed for highlight reels (melts)
3Play® 3P2 Product Highlights
Up to 2160p60 video on all channels with end-to-end IP connectivity
4 x 1080p60 SDI inputs on the chassis for convenience of hybrid SDI and IP sources
10 channel replay system supporting up to 8 external inputs and 2 outputs with 3 multi-viewer outputs
NDI® Telestrator Pro offers integrated dual channel telestration from any compatible connected device
Playback zoom and tracking for area of interest replays
Synchronized continuous capture to full-resolution QuickTime® files for instant replay, live editing, post-production, and archive
Playlist sharing allowing collaboration between 3Play® and TriCaster production systems
Simultaneous record and playback with ability to preview all angles simultaneously
Build playlists with full transitions, audio, sound effects, and stinger animations
LivePanel™ add-on to build browser-based user interfaces and workflows
Intuitive asset management and tagging system for metadata entry, navigation, organization, and content retrieval
Powerful production automation with custom macro commands, cross-platform workflow integration, and flexible control options
Support for MIDI, GPI, AMP protocol, and much more

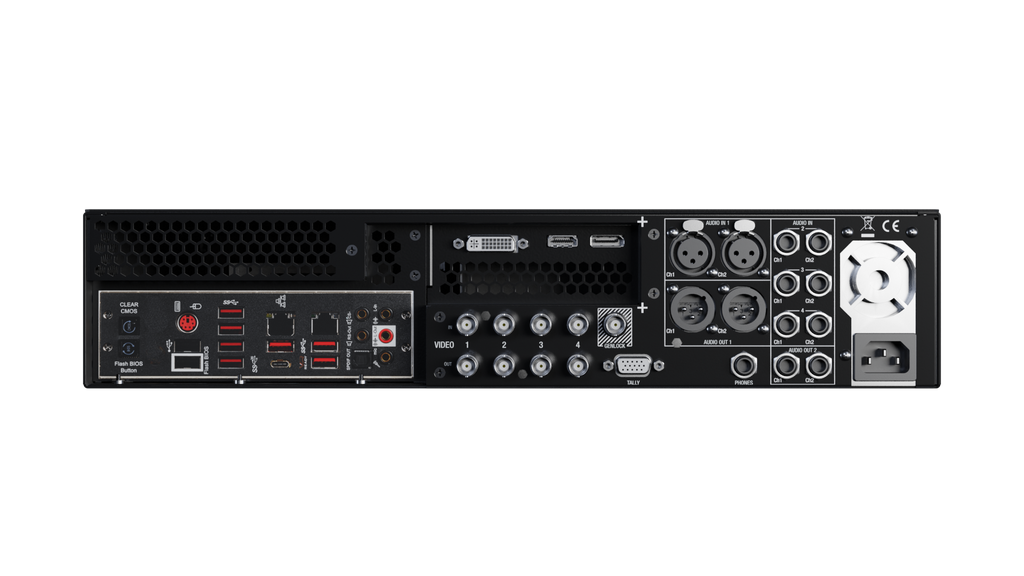

Category Technical Specification
Network Video Input
8 x resolution-independent IP video inputs via NDI® at rates of up to 4k60p
SDI Video Input
4 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates1
– 1080p: 59.94, 50, 29.97, 25
– 1080i: 59.94, 50
– 720p: 59.94, 29.97, 25
– 576i 50
– 480i 59.94
1Available frame rates determined by session video standard (NTSC or PAL)
Video Output
2 x session-format video outputs, with simultaneous delivery via IP and SDI
Network Video Output
2 x session-format IP video outputs via NDI®
SDI Video Output
2 x 3G/HD/SD-SDI connections. 4 BNC connectors that can be either
– 3G-SDI Output A
-3G-SDI Output A
– 3G-SDI Output B
– 3G-SDI Output B
or
– 1x UHD 2160p output via quad-link – Output B
Multiviewer Output
3 x multiviewer outputs supporting standard display resolutions
2 x HDMI (HDMI v2.1)
1 x DisplayPort (v1.4)
Recording
8 x simultaneous recording channels
Recording Format
QuickTime® SpeedHQ (4:2:2 encoding, 32-bit audio)
Storage
5 x 2TB SSD configured as 10TB RAID
Grab
Grab full-resolution, deinterlaced still images from inputs and outputs
Export
Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
DSK
1 x DSK channel per output, with independent source selection and transition
Telestration
Integrated NDI® Telestrator Pro technology supporting real-time telestration and transport control from compatible devices over the network
Asset Management
Asset management system supporting metadata entry, tagging, filtering, organization, navigation, bookmarking, and integration with compatible MAM platforms
Local Audio Input
– 4 x SDI embedded
– 1 x Balanced XLR stereo pair (Line)
– 3 x Balanced 1/4” stereo pairs (Line)
Local Audio Output
– 4 x SDI embedded
– 1 x Balanced XLR stereo pair
– 1 x Balanced 1/4” stereo pair
– 1 x Stereo 1/4″ (phones)
Network Audio
Native support for network audio input and output via NDI®
Processing
Video: Floating Point YCbCr + Alpha Color Space, using 4:2:2:4
Audio: Floating Point, 96 kHz
A/V Standards
– 3G-SDI video conforms to SMPTE 424M (Level A)
– HD-SDI video conforms to SMPTE 292M
– SD video conforms to SMPTE 259M and ITU-R BT.656
– Analog audio levels conform to SMPTE RP-155
Genlock
Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
Macros
Record, store, edit, and automate commands and user-configured operation sequences including support for cross-platform automation between supported systems
AMP
Supports Advanced Media Protocol for remote control via compatible third-party production systems
GPI
Supports GPI signals via JLCooper Electronics eBox GPI interface
MIDI
Support for standard MIDI protocol enabling third-party device control
System Drive
250GB SSD
NIC
1 x 10 GbE LAN
1 x 2.5 GbE LAN
1 x 1 GbE LAN
System Physical
2RU chassis with 500W PSU and multi-tiered hardware and software fail-safe
– 19.0 x 3.5 x 19.57 in (48.3 x 8.9 x 49.7 cm) with rack ears attached
– ~ 26 lbs (~12 kg)
Subject to change without notice.
