Digital Soldering Station with 70W Iron
Digital Soldering Station with 70W Iron
The Weller WE1010NA is a high performance 70W soldering iron with an ergonomic handle and easy tool-less tip change solution.
Digital 70W soldering station is 40% more powerful than the well-known WES/WESD stations. This allows the iron to heat up faster and provides a faster recovery time-- gets the job done quicker with more efficiency and precision.

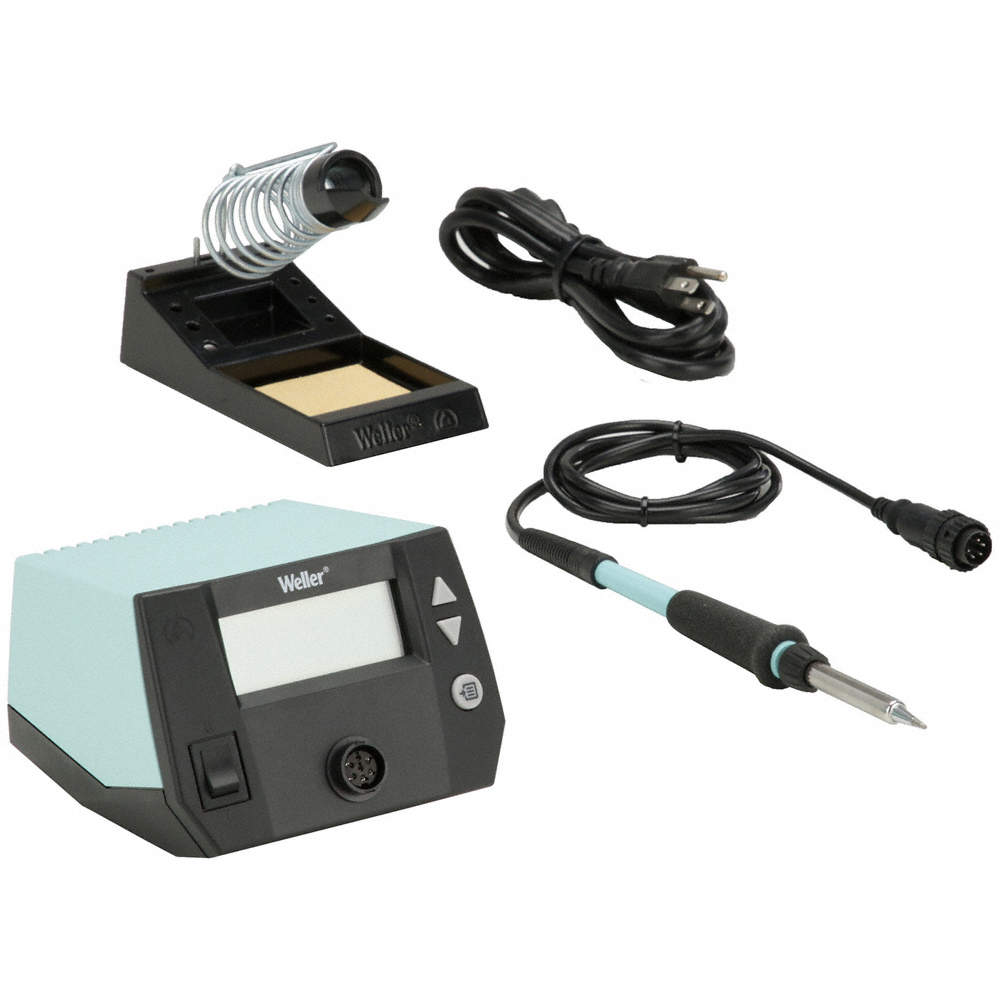

Includes: WE1 Soldering Station (120V, 70W) , WEP70 Soldering Iron with ETA tip, PH70 safety rest with sponge
Tip temperature control range: 200F to 850F (100C to 450C)
Intuitive navigation features: Password protection, Standby and Auto-off, temperature conversion from ° F to ° C all on a new LCD screen
Password-protected to preserve settings
Standby mode and Auto-off features conserves energy, protects equipment and extends tip life
23V / 70 Watt high performance soldering pencil
Simple tip change using the new WEP70 Tip Retainer (WEP70 Order No.: T0058770714)
Light weight soldering pencil with a new co-molded grip
Uses the new PH70 Safety Rest with sponge (PH70 Order No.: T0058770706)
ESD safe, UL and cUL listed
Wattage: 70W
Temperature Range: 200° F - 850° F / 100° C - 450° C
Temperature Accuracy: Average tip temperature can be "offset" to ± 9°F / ± 5°C at idle with no load.
Temperature Stability: ± 10° F / ± 6° C
Dimensions (L x W x H): 5.91 in x 4.92 in x 3.94 in
No user manual available for download
