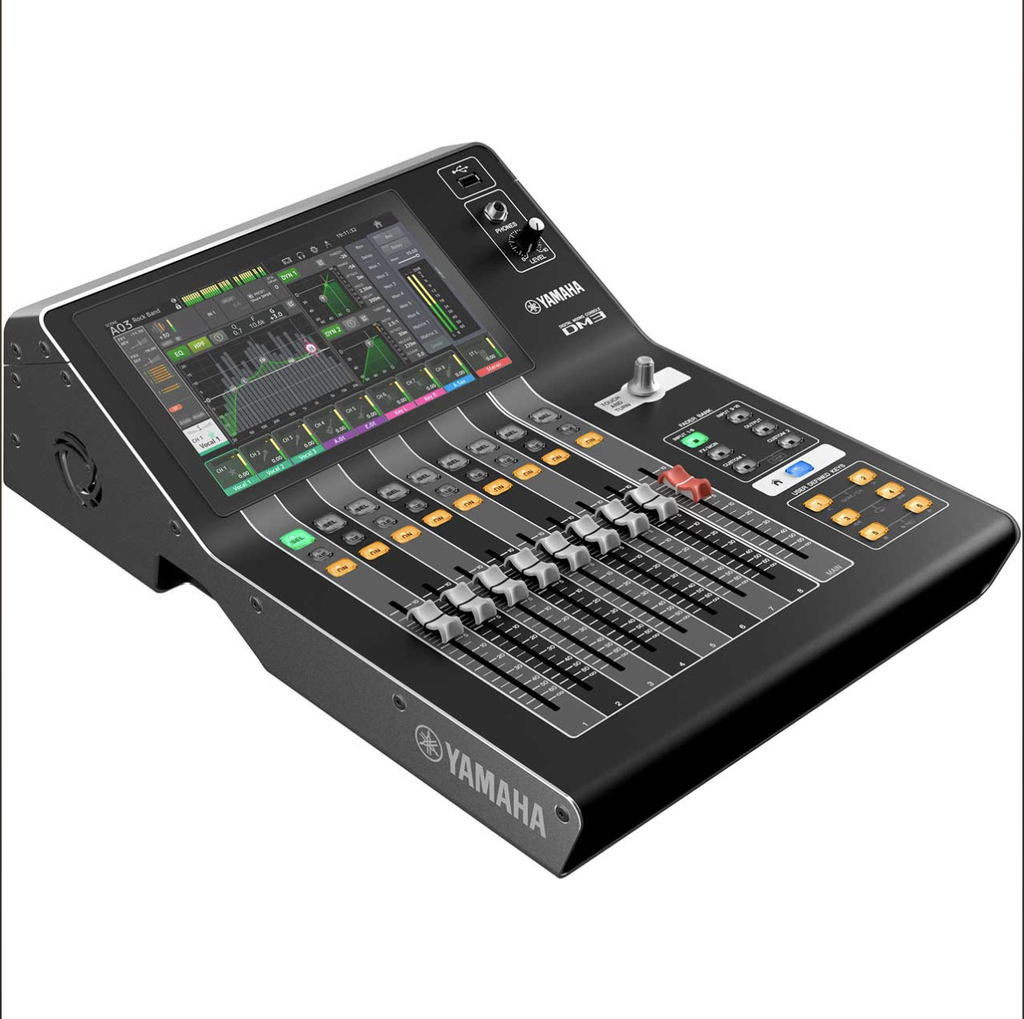

Yamaha DM3S (New)
Price via quote
Professional 22 Channel Ultracompact Digital Mixer with 9-Inch Touch Screen - Standard
Select Condition
Yamaha DM3S (New)
Professional 22 Channel Ultracompact Digital Mixer with 9-Inch Touch Screen
The Yamaha DM3S is an ultra-compact 22 Channel digital mixer sure to get you your next gig. Capable of 96kHz sample rates, the DM3 Series continues the Yamaha legacy of sonic purity, offering you the perfect canvas for mixing, recording, and streaming from a company that knows how to create music. When not on stage, DM3S can be used as a DAW controller in the home studio. Built to make mixing easy the console encourages the engineer to focus on the music, utilizing a best in class, 9" touchscreen and a single Touch & Turn knob for managing most of the operation.
Automix
The new Automix function is available on input channels 1 through 8 (fixed) in Editor Version 3.0. This easy to setup feature reduces background noise and feedback without busy fader operation, which is essential for speech and broadcast applications.
Features
Renowned Yamaha sound quality with 96kHz sample rate
22 Channels (16 Mono / 1 ST / 2 ST FX RTNs)
6 Mono or 3 ST Mixes / 2 Matrixes / 1 ST Bus
16 Professional Yamaha Pre-Amps (12x XLR + 4x Como Jack)
8 Analog Outpus (XLR)
18 x18 USB Audio Interface for playback and recording and 2x2 USB recorder
Best in Class 9" Touch Screen
DAW Remote Mode including transport control
Custom control via OSC, USB-MIDI and Provisionaire
Bundled with Cubase AI
Mixing Capacity
Input Channels: 16 Mono, 1 Stereo, 2 FX Return
Buses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Input to Matrix supported)
Local Connectors
Analog In: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)
Analog Out: 8 (XLR)
Dante I/O ): 2 (etherCON : Primary/Secondary, 16 In/Out)
Ethernet: 1 (RJ-45)
USB to Host: 1 (USB Type-B)
USB to Device: 1 (USB Type-A)
Phones: 1 (TRS Phones)
DC IN: 1 (XLR 4pin)
User Interface
9-inch multi-touch screen
9 x 100mm Motorized fader (8 channels + 1 master)
1 x Rotary Encoder (Touch and Turn)
Recording & Playback
PC (via USB to Host) (USB 2.0): 18 track recording/playback
USB Storage Device: 2 track recording/playback
Sampling Rate: 96 kHz/48 kHz
Power Requirements: DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz)
Power Consumption: 45W
Operating Temperature Range: 0 to 104°F (0 to 40°C)
Storage Temperature Range: -4°F to 140°F (-20 to 60°C)
Dimensions (W x H x D) Inches: 12.6 x 17.9 x 5.5
Weight: 14.33 lbs
Software
DM3 StageMix
MonitorMix
ProVisionaire Control/Touch
Item Includes:
1x DM3 Ultra-compact 22 Channel Mixer
1x Power Adapter (PA-L500)
1x Owner's Manual
1x Cubase AI Download Information
