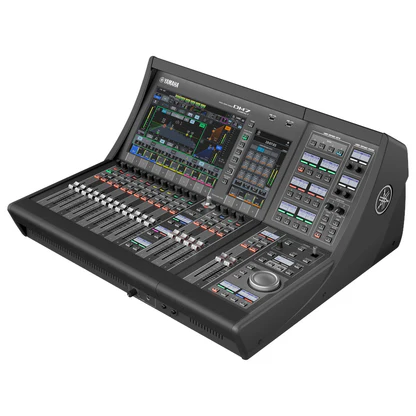

Yamaha DM7C Digital Audio Console (New)
Price via quote
Compact Dante Enabled Professional72-Channel Single Bay Digital Console
Select Condition
Yamaha DM7C Digital Audio Console (New)
Compact Dante Enabled Professional 72-Channel Single Bay Digital Console
72-channel Compact Mixing Console
Driven by Music. Defined by Quality.
More than 30 years since the release of Yamaha's first digital mixer, the DMP7, the landscape of professional audio has seen a steady progression in technological advancements and innovations that have impacted mixing and recording styles significantly.
Features
DM7 series mixing consoles represent a sizable step forward in this evolution of form, functionality, and flexibility with their intuitive UI, compact design, and comprehensive suite of powerful features that allow them to outperform other mixers in their class in an impressive range of audio environments. From broadcasting, streaming, and music production, to live hybrid events and concert performances, the advanced capabilities of the DM7 series set a new standard in operability and workflow while simultaneously staying true to Yamaha's sonic tradition of "natural sound". As the times continue to change, your DM7 will keep you ahead of the curve with a user experience that's a cut above anything in its class, and sonic performance well beyond the expectations of audiences and engineers alike.
The DM7 series is an innovative digital mixer lineup that not only guarantees unparalleled sound quality, ease of operation, and high reliability to connect engineers, artists, and audiences, but is also highly scalable and flexible enough to adapt according to application. A DM7 setup can take on a variety of configurations depending on the engineer's preferences and can support a wide range of sonic environments.
Due to their compact yet flexible design, DM7 series mixers can be used in a wide range of audio applications. With their comprehensive functionality, expansion options, and outstanding ease of use, DM7 consoles excel in a truly impressive array of use cases.
Applications
Live Sound
Performing Arts Center & Theater
House of Worship
Streaming
Mixing Capacity
Input Channels: 72 mono
Mix Buses: 48
Matrices: 12 (input to matrix supported)
Stereo Buses: 2
Mono Buses: 1 (stereo B can be changed)
Cue Buses: 2
I/O Connectors
Analog Input: 16
Analog Output: 16
Dante: Primary/secondary
AES/EBU Input: 0
AES/EBU Output: 1 (2ch)
Expansion Slot (PY Slot): 1
Word Clock I/O: In/Out
MIDI: No (protocol supported on USB to HOST)
GPI: 5 in / 5 out
USB TO DEVICE: 2 (file save / load, 2 track rec / play
USB TO HOST: 1 (USB type-C, USB2.0
Ethernet: Yes
Meter Bridge: On screen
Lamp: 0 (built-in LED strip light)
Video Out: No
TC In: Yes
Phones: 1
AC: 2 (V-lock type)
External Redundant Power Supply: Built-in dual power supply
Input Channel Functions
Input A/B: Yes
Gain Compensation: Yes
Digital Gain: Yes (-96 dB to +24 dB)
Attenuator: Yes (-96 dB to +24 dB)
HPF: 20 Hz to 2,000 Hz, -6/-12/-18/-24 dB/oct Selectable
PEQ: 4 Band Full PEQ (4 algorithms, RTA overlay supported)
LPF: 20 Hz to 20 kHz, -6/-12 dB/oct
Dynamics 1: Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser
Dynamics 2: Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp
Input Delay: Yes (0 ms to 1,000 ms)
Pan: Center Nominal / LR Nominal
DCA Group: 24 (Output DCA supported)
DCA Rollout: Yes
MUTE Group: 12
Number of Inserts: 4 slots on 1 insert point
Dan Dugan Automixer: Yes (Up to 64ch)
Direct Out: Yes
Output Channel Functions
PEQ: 8 Band Full PEQ
GEQ: Virtual Rack (EQ Rack)
Dynamics 1: Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp
Output Channel Delay: Yes (0 ms to 1,000 ms)
MUTE Group: 12
Number of Inserts: 4 slots on 1 insert point
Output Channel Functions
PEQ: 8 Band Full PEQ
GEQ: Virtual Rack (EQ Rack)
Dynamics 1: Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp
Output Channel Delay: Yes (0 ms to 1,000 ms)
MUTE Group: 12
Number of Inserts: 4 slots on 1 insert point
Output Channel Functions
PEQ: 8 Band Full PEQ
GEQ: Virtual Rack (EQ Rack)
Dynamics 1: Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp
Output Channel Delay: Yes (0 ms to 1,000 ms)
MUTE Group: 12
Number of Inserts: 4 slots on 1 insert point
Dante
Number of I/O Channels: 144 in / 144 out
Number of I/O devices that can be discovered from the console: 127 *1
Number of I/O devices that can be mounted: 24
Number of I/O devices with HA remote control: 24
Dante Patch from Console: Yes
USB to Host
Number of Audio I/O Channels: 18 in / 18 out
USB MIDI: Yes
Physical
Dimensions (WxHxD): 18.5" x 12.8" x 22.2"
Weight: 36.4 lb
Item Includes:
1x Owner's Manual
1x AC power cords
1x Dust cover
1x Cable hook (for USB TO HOST)
1x Nuendo Live
1x VST Rack Elements
